Ψ Mnemonica

Instance inheritance for JavaScript & TypeScript — and the toolchain that makes it visible.

mnemonica is an instance-inheritance system: you declare types with define(), and construct subtypes from parent instances — new instance.SubType(args). The prototype chain back to the root is the identity of every object. On top of that runtime sits a full toolchain: static analysis that gives runtime types real TypeScript types, a VS Code extension that draws the whole graph in 3D, and tracing that follows a running application through its instances — all the way into Jaeger.

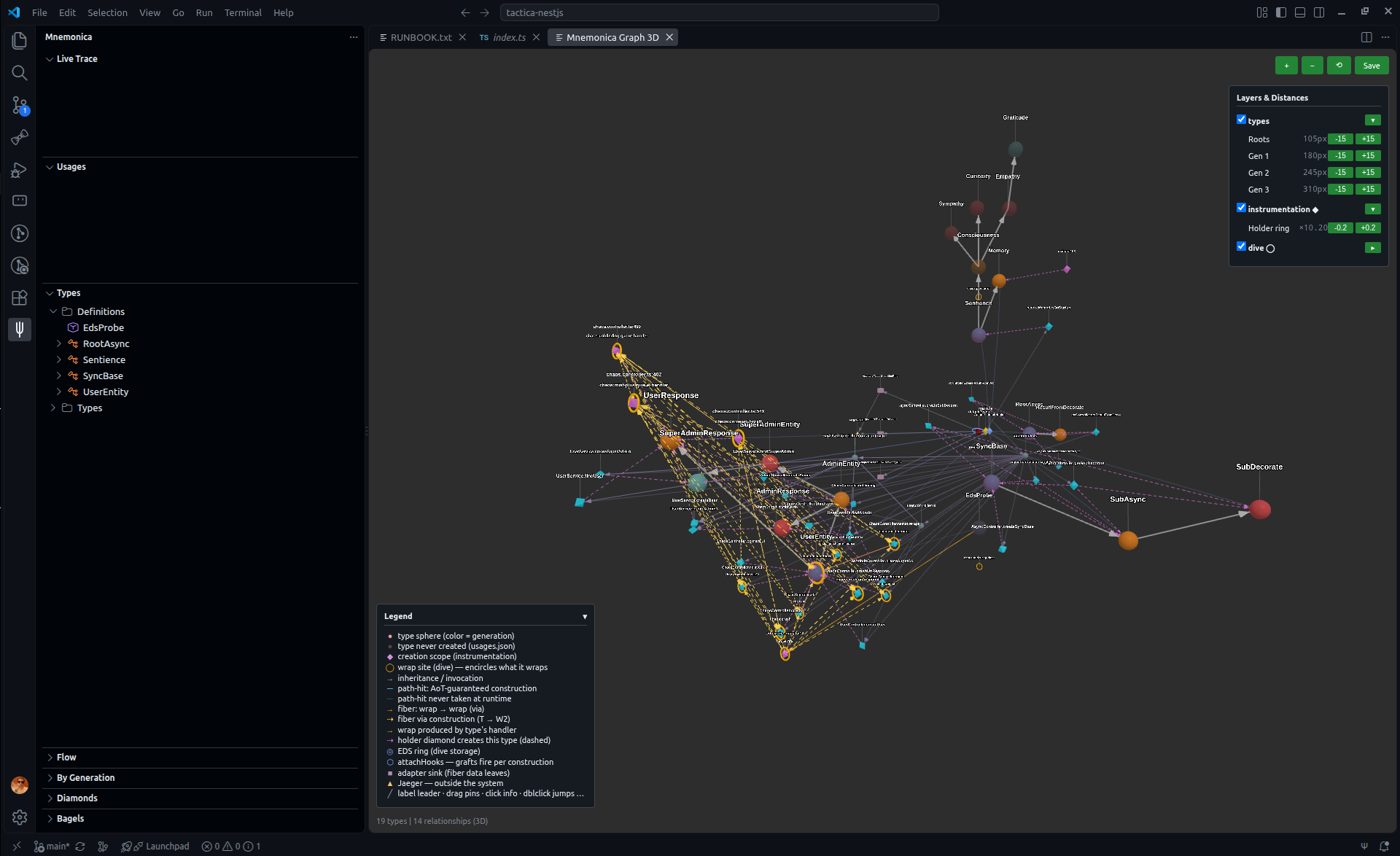

Mnemonica Graphica 3D view of the tactica-nestjs demo app: colored spheres for types, diamonds for creation scopes, rings for dive wrap sites

A real NestJS application drawn by Mnemonica Graphica: spheres are types (color = inheritance generation), diamonds are the scopes that construct them, rings are dive wrap sites, and the fibers between them are invocation and construction edges. Every element is draggable, clickable, and jumps back into source.

Take a look

  1. Install Mnemonica Graphica in VS Code — search mnemonica in the Marketplace, or grab the repo.
  2. Clone the demo and open it:
    git clone https://github.com/mythographica/tactica-nestjs
code tactica-nestjs
  3. Click the Ψ icon in the activity bar — Types, Usages, Flow, By Generation, Diamonds and Bagels are already populated (.tactica/ is committed, so this works from a fresh clone).
  4. Command Palette → Mnemonica: Ψ 3D — the scene from the screenshot, live. Drag spheres, diamonds and rings; Save keeps your arrangement.
  5. Want more? npm install && npm run start:dev in the demo, then Mnemonica: Ψ App Channel → Discover & Connect — Live Trace lights up, and npm run jaegger:pre-configured brings up Jaeger with links that jump back into VS Code.

The tools

mnemonica

The runtime: define(), lookup(), decorate(), hooks, async constructors, error lineage.
npm: mnemonica

@mnemonica/tactica

Static analysis that turns runtime definitions into TypeScript: emits .tactica/ types, registry augmentation, usage and creation graphs. No casts, ever.
npm: @mnemonica/tactica

Mnemonica Graphica

The VS Code extension: type trees, usages, flow, generations — and the interactive 3D graph with Live Trace of a running app.
Code: Mnemographica

@mnemonica/dive

Async context without AsyncLocalStorage: the instance is the context. Wrap callbacks, trace lineages, enrich errors.
npm: @mnemonica/dive

@mnemonica/otel

Framework-agnostic lifecycle instrumentation: mnemonica hooks → OpenTelemetry spans.
npm: @mnemonica/otel

@mnemonica/nestjs

The full NestJS wiring: exception filters, interceptors, ALS bridge, the embedded trace channel.
npm: @mnemonica/nestjs

@mnemonica/strategy

MCP-shaped server and WS channels: live-craft (define and swap constructors without a restart), trace streaming.
npm: @mnemonica/strategy

tactica-nestjs

The demo app from the screenshot — a small NestJS project wired with the whole ecosystem, .tactica/ committed.
clone & explore

FineCut

Pack of file-based CMS: Express / Fastify / NestJS vs @mnemonica/otel versions twins vs @mnemoniva/dive rig for observability comparison. Plus switchable BFF with a live admin panel, and a Jaeger.
